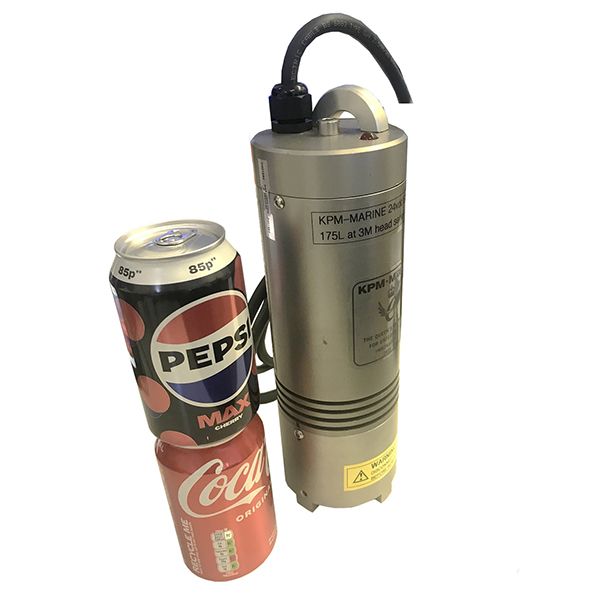

Predator 150 12-24V
Tough, Compact and 175l/min
The Predator 150 was born by market demand and customers wanting the same Predator reliability and performance but much smaller. The result was the Predator 150 with an incredible water flow of 175l per min or 525 cans of coke from 6 amps.
Specification
- 175l/min @3m head 10m hose ( see our fitting guide)
- 24V running at 6 amps full pump load
- 2m of marine grade cable (Longer as option)
- Run dry capability - 2 weeks (turned off test)
- IP68 and fully waterproof to 15m depth
- Robust anti corrosion hard anodised aluminium construction
- Stainless impeller system
- Fully repairable
- 1 year warranty
- 12G impact tested
- Warranty return rate 0.03% over 4,000 units over 10 years
- Weight 3.5kg including bracket
- Compact Diameter 90mm/3.6” x 260mm/10.4” long
- Spark resistant material and hermetically sealed
- 95% recyclable with no VOC’s
- Quick glance red indicator light to show running
- Wide range of approvals
- 1”/25mm id pipe fitting
- 12 to 24V step up unit available for 12V systems
Standards
ISO 8849 SMALL CRAFT ELECTRICALLY OPERATED PUMPS
ISO 8846 SMALL CRAFT ELECTRICAL DEVICES PROTECTION FROM FLAMMABLE GAS
HSC 2000 PART 4 SECTION 3 BILGE AND BALLAST SYSTEMS
USCG PRG 46-CFR-182.520
UL1113 ELECTRICALLY OPERATED PUMPS FOR NON FLAMMABLE LIQUIDS, MARINE
UL Test
- Vibration tested for 12 hours at 10Hz
- Shock testing at 10G 5,000 times
- Freeze test whilst operating at -30ºC

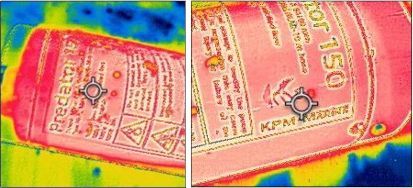

- High temperature at 70ºC at 120% loading. Limit is 150ºC KPM was 79.9ºC

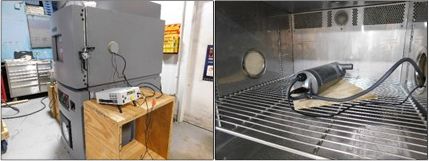

- Stray leakage hit with 500V
- On off cycle 5,000 times

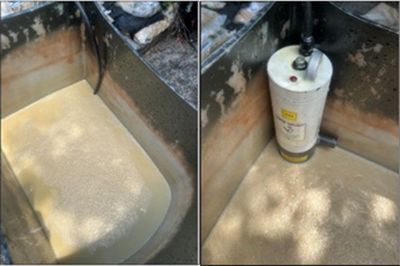

- Abnormal continuous running in 18l sea water, 3.8l crank case oil, 1.9l petrol
- Run dry at full load 7 hours
- Salt spray 192 hours

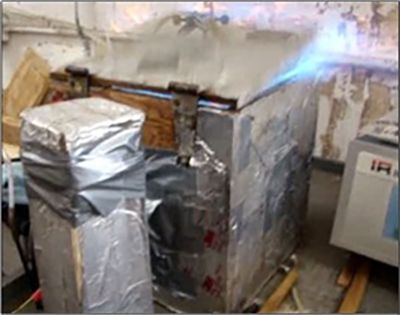

- Explosion test 50 off gas ignitions
- Locked rotor test
- Accelerated aging and strain tests
