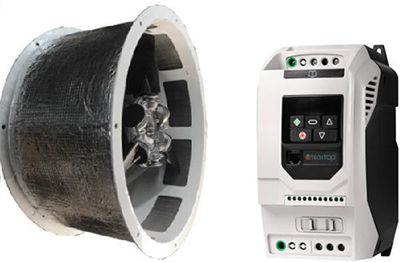

Duct Fans
Fully configurable to customer specifications
KPM duct fans are manufactured in house and can be configured to the customer’s exact requirements balancing power, pressure, diameter and flow. All units can be supplied with VFD units for full control.
All fans are designed with excess power availability so that blade pitches can be increased if a higher air requirement is required, especially if engines are upgraded.
The units are easy to specify and easy to fit and are the preferred choice of Shipyards due to their versatility and range of options.
Stainless and aluminium housings are available.
Common Sizes in Stock
| DIA mm | KW max | Cubic m/min | Pa Mid |
|---|---|---|---|
| 300 | 0.18 | 42 | 2 Male |
| 350 | 0.18 | 62 | 160 |
| 350 | 1.1 | 100 | 400 |
| 450 | 1.5 | 175 | 400 |
| 450 | 2.2 | 200 | 400 |
| 500 | 3 | 250 | 558 |
Power Options
- 230V 50Hz single phase
- 230V 50Hz 3 phase
- 208V 60Hz single phase
- 208V 60Hz 3 phase
- ATEX available upon request

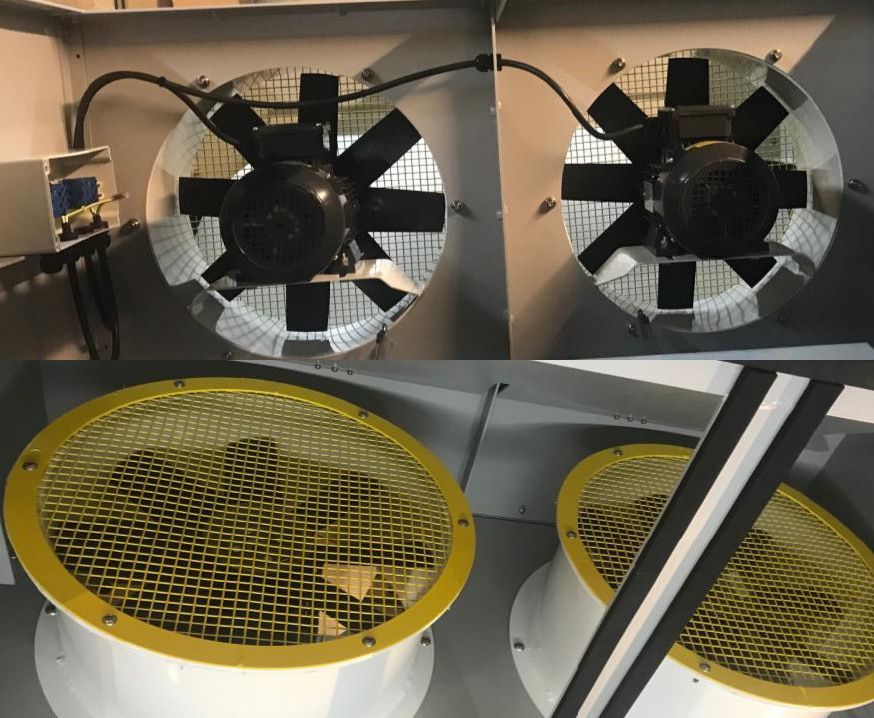

Complete Systems Approach
KPM manufacture to a complete systems approach designed to the vessel requirements from input vanes to output for machinery spaces, generator and battery compartments.

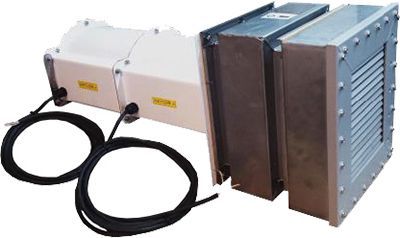

ATEX to DNVGL RU-Ship-Pt6-Ch2
KPM manufacture a range of ATEX fans to meet the demands of Hydrogen and Electrical power units. These are made specifically for the Vessel requirements and twin Fan as per regulation.

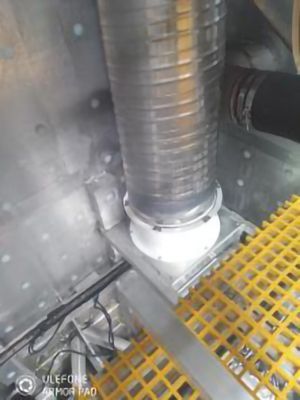

Special Manufacture
KPM will configure fans to specific applications where standard fan ranges are not suitable.

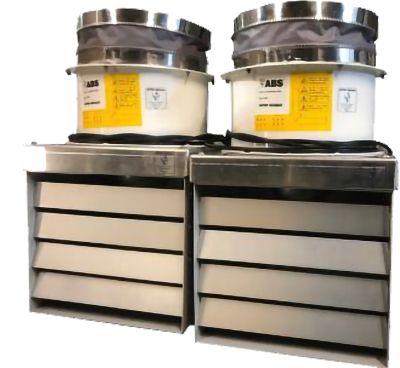

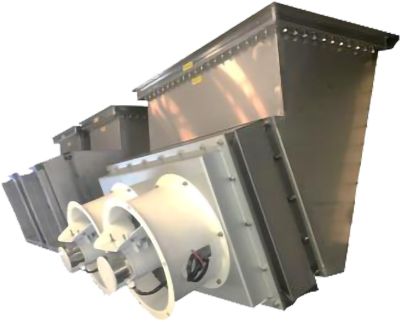

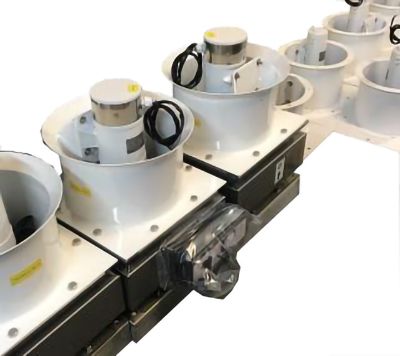

Ducted Systems Kits
The full range of duct kit systems can be supplied and integrated with, A60 dampers, silencers, diffusers, fan box units in stainless steel for marine use.

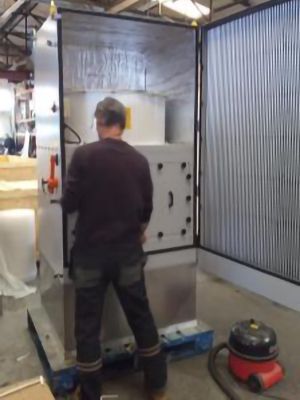

Large Format Fans
KPM manufacture large fans from 5-6kW and 800 mm diameter.

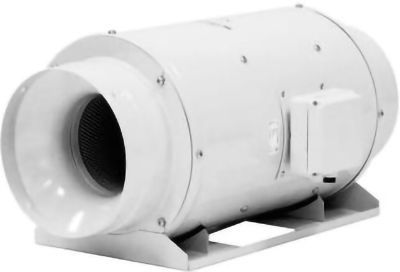

In Line Mixed Flow
KPM in line fans from 100mm to 200mm diameter in 24V or 230V. Silenced as standard.

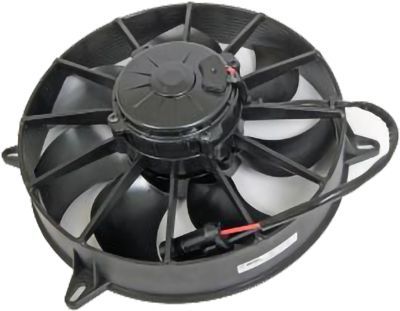

Axial Fans 12-24 Volt
KPM carry a stock of small axial fans from 11-16 inches. Fan boxes are also available in single or twin configuration to fit a 160mm diameter duct.
