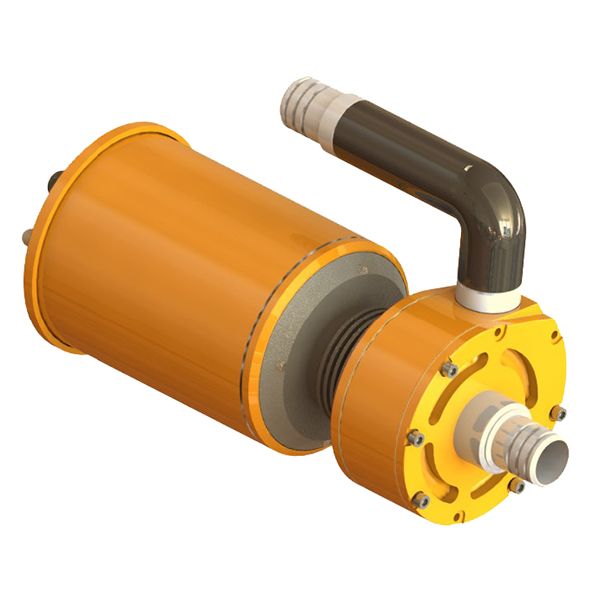

Predator 1000 24V
Fully submersible to 15m
The KPM 1000-24 is a compact high capacity bilge pump, that replaces the popular KPM 350, where larger vessels head heights exceed 6m. The pump can be used on the existing KPM 350 electrical feed at 20 amps.
The KPM range of Centrifugal pumps have been developed for multiple uses on vessels, from emptying bilges, fire-fighting equipment, ballast, washing of decks and chains and air conditioning systems.
As all KPM pumps they have full run dry capability.
Features include
- 450 l/min Max and 17m head Max (see our fitting guide)
- 24 volt running at 29 amps full pump load
- 3 meters of marine grade cable (Longer as option)
- Run dry capability - 2 weeks (turned off test)
- IP68 and fully water proof to 15m depth
- Robust anti corrosion hard anodised aluminium construction
- Light weight composite impeller
- Fully repairable
- 1 year warranty
- 12g impact tested
- Warranty return rate 0.03% over 4000 units over 10 years
- Weight 11.5 kg including bracket
- Compact Diameter 142mm x 425mm long
- Spark resistant material and hermetically sealed
- 95% recyclable with no VOC’s
- Quick glance red Indicator light to show running
- Wide range of approvals
- 38mm id pipe fitting 1-1/4 BSP or NPT
- 12 to 24 Volt step up unit available for 12 volt systems
Standards
ISO 8849 SMALL CRAFT ELECTRICALLY OPERATED PUMPS
ISO 8846 SMALL CRAFT ELECTRICAL DEVICES PROTECTION FROM FLAMMABLE GAS
HSC 2000 PART 4 SECTION 3 BILGE AND BALLAST SYSTEMS
USCG PRG 46-CFR-182.520
UL1113 ELECTRICALLY OPERATED PUMPS FOR NON FLAMMABLE LIQUIDS, MARINE
