Predator 1000 230V
Exceeds Section 2 Fire Safety Measures for cargo ships of less than 500 gross tonnage

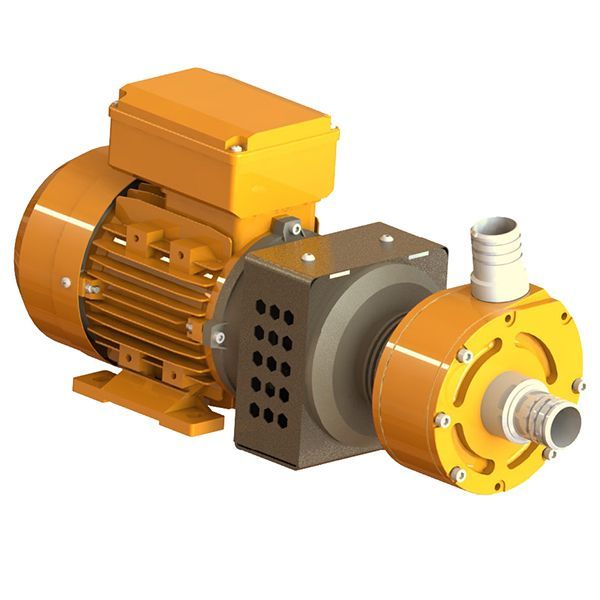

The KPM 1000-230 is a compact high capacity centrifugal pump developed for multiple uses on vessels, from emptying bilges, fire-fighting equipment, ballast, washing of decks and chains and air conditioning systems. The variable speed can be achieved with a VFD upon request.
As all KPM pumps they have full run dry capability.
Also available in 3 phase and ATEX.
Features include
- 500l/min Max and 17m head Max (see our fitting guide)
- 230 AC volt running at 4.87 amps full pump load
- 3 meters of marine grade cable (Longer as option)
- Run dry capability - 2 weeks (turned off test)
- IP56
- Robust anti corrosion hard anodised aluminium construction
- Light weight composite impeller
- Fully repairable
- 1 year warranty
- 12g impact tested
- Warranty return rate 0.03% over 4000 units over 10 years
- Weight 14.5 kg including bracket
- Compact Diameter 142mm x 425mm long
- Spark resistant material and hermetically sealed
- 95% recyclable with no VOC’s
- Quick glance red Indicator light to show running
- Wide range of approvals
- 38mm id pipe fitting 1-1/4 BSP or NPT
Standards
ISO 8849 SMALL CRAFT ELECTRICALLY OPERATED PUMPS
ISO 8846 SMALL CRAFT ELECTRICAL DEVICES PROTECTION FROM FLAMMABLE GAS
HSC 2000 PART 4 SECTION 3 BILGE AND BALLAST SYSTEMS
USCG PRG 46-CFR-182.520
UL1113 ELECTRICALLY OPERATED PUMPS FOR NON FLAMMABLE LIQUIDS, MARINE
